Infinitybox Cell Outline Drawings

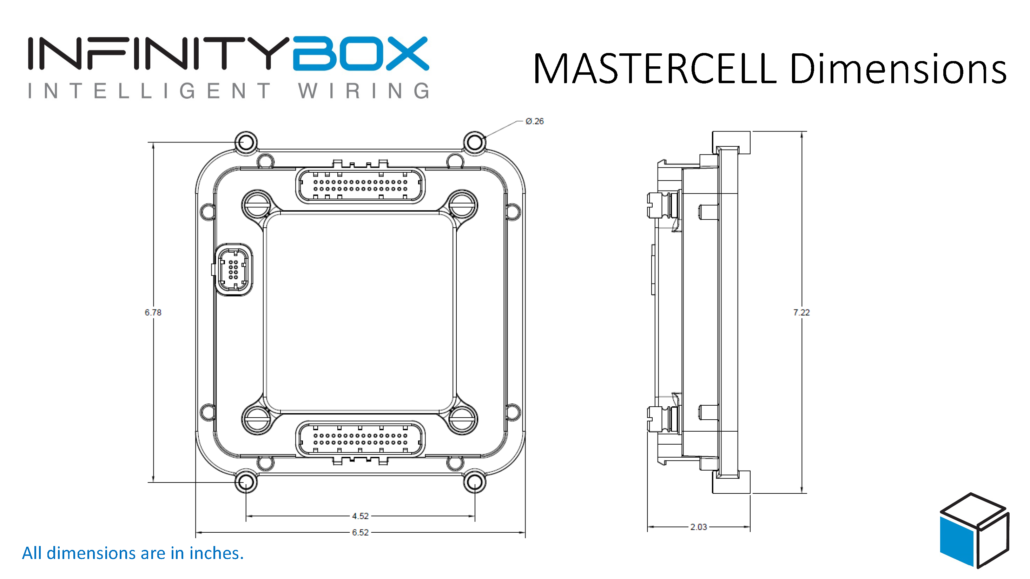

This blog post has the outline drawings for our Infinitybox MASTERCELL, POWERCELL and inMOTION Cell.  You can use these drawings to plan the layout of these cells in your car or truck project.  All of the dimensions on these drawings are in inches.

The basic footprint for the MASTERCELL, POWERCELL and inMOTION cell is exactly the same.  The mounting tabs for all three cells are identical.  The holes in the mounting tabs are designed for a 1/4″ X 5/8″ shoulder bolt.

You can download PDF versions of these drawings at these links.

MASTERCELL

POWERCELL

inMOTION Cell

Click on this link to contact our technical support team if you have any additional questions about our Infinitybox system.
